High speed textile heat transfer sublimation printer CF-3000

Home - Product- High speed textile heat transfer sublimation printer CF-3000

CATALOGS

APPLICATION

High speed textile heat transfer sublimation printer CF-3000

High speed textile heat transfer sublimation printer CF-3000

Machine Type:CF-3000
Print Dimension:1900mm
Ink Type:CMYK
Printing:300DPI(Physical)
Printing Speed:2PASS:162㎡/h; 3PASS:109㎡/h; 4PASS:82㎡/h；
Operating environment:18~30℃ /Humidity:35%~65%

Leave Message Inquiry Online

Product Description

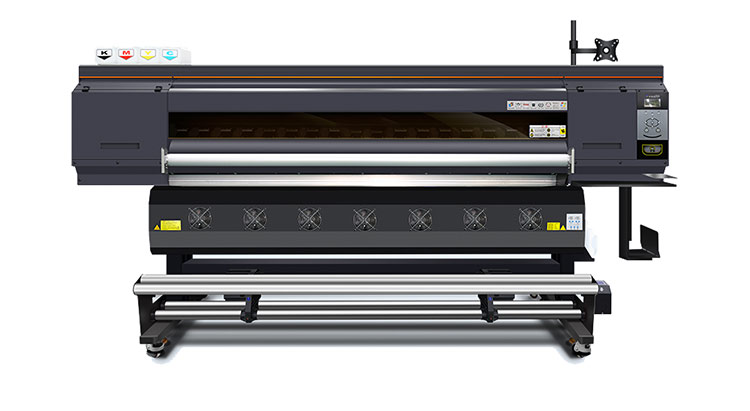

Digital printer CF-3000

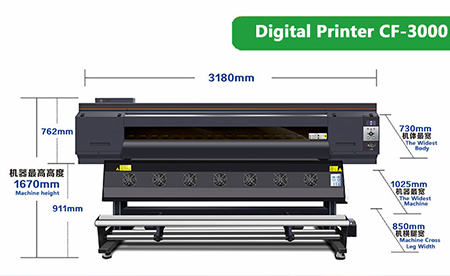

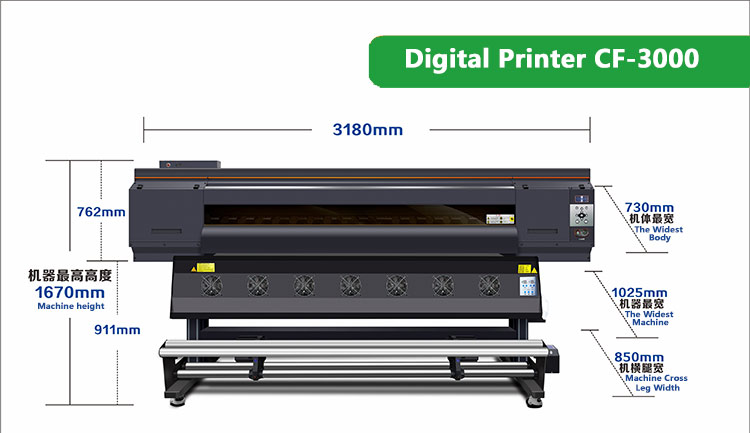

Size data

Functions and features:

1. Ink stack: equipped with advanced intelligent nozzle cleaning and moisturizing device, providing safe and convenient nozzle cleaning and maintenance functions, operation and maintenance are more convenient.

2. Motor: Servo and stepper adopt high-quality brushless integrated motor from Leisai, high-precision drive linear decoding, higher precision, smaller error, and more stable operation.

3. Guide rail: The THK silent guide rail imported from Japan is used to effectively reduce the resistance and noise in the operation of the ink cart.

Imported paper pressing roller: The American fluorine rubber pressing roller is adopted, and the paper feeds smoothly, refuses to wrinkle, prevents static electricity and does not fly ink, and the printing size is more accurate.

4. Ink cartridges: 4 ultra-large-capacity ink cartridges independently and continuously supply ink, which provides guarantee for the equipment to work continuously for a long time.

5. Intelligent alarm for lack of ink: Intelligent reminder of lack of ink reduces the cumbersomeness of frequently checking the remaining amount of ink. At the same time, it promptly reminds to add ink to ensure the continuity of printing work.

Advantage

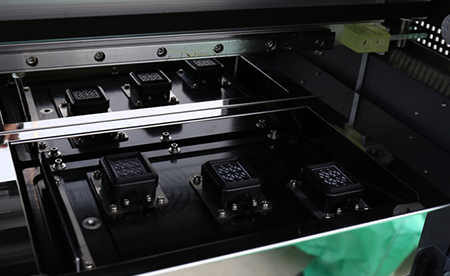

Ink stack

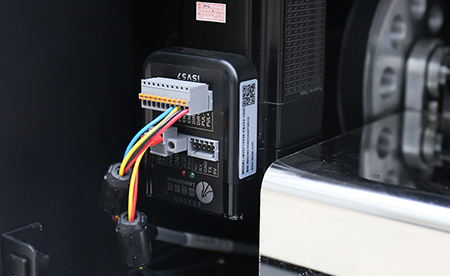

Motor

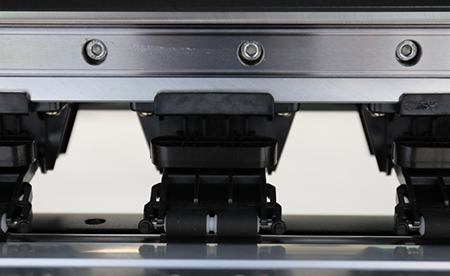

Guide rail

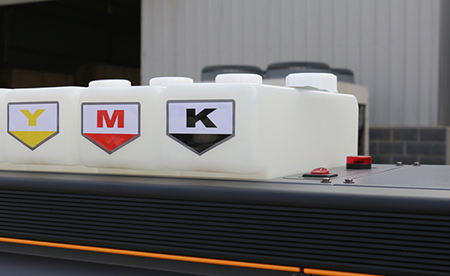

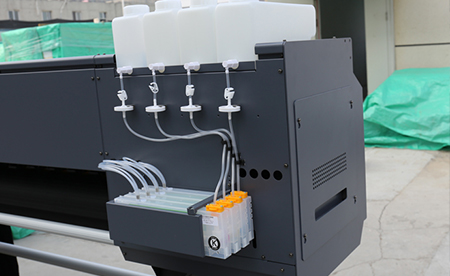

Ink cartridges
Intelligent alarm for lack of ink

parameter

Device model		CF-3000
Sprinkler	Nozzle type	EPSON I3200-A1
	Number of nozzles	3 pcs
	Nozzle attributes	Automatic cleaning, automatic flash spray moisturizing function
Printing speed		2pass 162㎡/h
		3pass 109㎡/h
		4pass 82㎡/h
Ink	Color scheme	C M Y K
	Ink type	Sublimation ink
	Ink supply method	Siphon ink supply
Effective width		1900mm
Print media		Sublimation paper
Media transfer		Dual power direct collection
Drying method		External intelligent air-heat integrated dryer
Moisturizing mode		Fully sealed automatic moisturizing and cleaning
RIP software		Support Maintop6.1, photoprint, ONYX, NeoStampa and other software, standard Maintop6.1
Support image format		JPG, TIF, PDF, etc.
Computer setup	Operating system	Win7 64bit / Win10 64bit
	Hardware requirements	Hard disk: 500G or more (solid state drive is recommended), running memory 8G, graphics card: ATI independent display 4G memory, CPU: Intel quad-core i5/i7 processor
	Transmission interface	Gigabit Ethernet
Standard configuration		Tension delivery system, intelligent drying system, liquid level alarm system
Working environment		Humidity: 35%-65% Temperature: 18-30 degrees
Power requirement	Input voltage	210-230VAC 50/60 HZ 10A
	Printing system	850W
	Drying system	Maximum power: 3600W
Machine size	Physical dimension	318010251670mm
Machine size	Package dimensions	33609501150mm
